THE

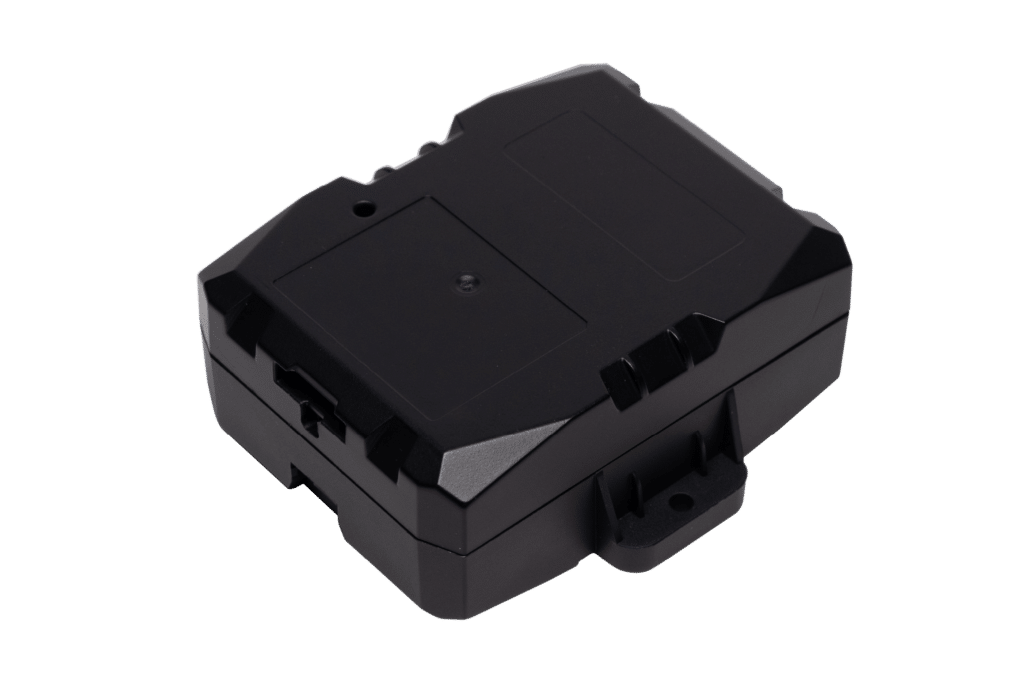

SVR514

The SVR514 gives you complete North American coverage in a compact, rugged design that’s
completely wireless—no wiring required for installation. With industry-leading battery life, this
device keeps your assets protected for the long haul. Dependable, versatile, and built for
business, the SVR514 is the ultimate solution for secure asset tracking.

KEY FEATURES

Self-Powered,
No Wired Installation Required

LTE/5G Compatible Connectivity

Multi-Carrier Coverage Throughout the U.S., Canada, and Mexico

Extra-Long Battery Life

Automatic Reporting 4 Times Per Day With Full GPS Locations & Dedicated Recovery Mode

Sealed Against Dust, Water, and High-Pressure Spray Water Intrusion

MARKET APPLICATIONS

Stolen Vehicle Recovery

Asset Protection

Payment Assurance

Compliance and Reporting

Enhanced Risk Management

Lot Management

SPECIFICATIONS

CELLULAR CONNECTIVITY

TECHNOLOGY

LTE Cat-M

WIRELESS CARRIERS

AT&T, T-Mobile, Bell, Rogers, Telus, SaskTel, Telcel, Movistar, AT&T Mexico

GNSS TECHNOLOGY

LOCATION TECHNOLOGY

72-channel with concurrent reception of data from multiple constellations

ACQUISITION SENSITIVITY

-148 dBm

TRACKING SENSITIVITY

-167 dBm

ACQUISITION TIME

1s Hot start
28s Cold start

INPUTS & OUTPUTS

INTERNAL SENSORS

3-axis accelerometer, system temperature, & battery level

ANTENNAS

Internal Cellular
Internal GPS

BUTTONS

Power On

Battery Pack

BATTERY CAPACITY

9000mAh LiMn02

BATTERY TECHNOLOGY

Patented Smart PowerSM technology

BATTERY LIFE

5+ Years depending on configuration

ENVIRONMENTAL

STORAGE TEMP

-40°C to 85°C

OPERATING TEMP

-20°C to 60°C

RELATIVE HUMIDITY

Up to 90% non-condensing

IP RATING

IP67

SHOCK & VIBRATION

SAE-J1455

PHYSICAL

DIMENSIONS

84mm x 63mm x 26mm

WEIGHT

200g

ACCESSORIES

Magnetic mounting bracket

CLOUD/SERVICES

DEVICE MANAGEMENT

Monitor, manage, configure and troubleshoot device remotely

PUI APIs

Quickly integrate data stream via PUI’s RESTful APIs

REGULATORY APPROVALS/CERTIFICATION

FCC, IC, PTCRB, CE

Specifications are subject to change.
Please see your SVR Tracking contact for more details.
